SLURRY PUMP PARTS

China Slurry Pump Parts

 AH China Slurry Pumps
China  AH Slurry Pumps
¥ 0.00
SP Vertical Slurry Pump
Size: 40~300mm
Capacity: 7.28-1300m3/h
Head: 3-45m
Handing solids: 0-79mm
Concentration: 0%-70%
Submerged length:500-3600mm
Materials:High chrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel
¥ 0.00
China  G/GH Sand Gravel Pumps
Size: 4" to 18"
Capacity: 36-4320m3/h
Head: 5m-80 m
Max. frame power: 1400kw
Handling solids: 0-260mm
Concentration: 0-70%
Material: A05 alloy,
¥ 0.00
China HH High Head Slurry Pump
Size: 1" to 6"
Capacity: 16.2-1008m3/h
Head: 12-118m
Handing solids: 0-70mm
Casing pressure: Max.750 psig
Materials: Hyper chrome alloy etc.
¥ 0.00
China AF Vertical Froth Slurry Pump
Size: 2-8inch
Capacity: 6-575m3/h
Head: 5-30m
Max.power: 110kw
Materials: High chrome alloy, Rubber, Polyurethane etc.
¥ 0.00
China  L Light Duty Slurry Pumps
Size: 20-650mm
Capacity: 2.34-9108m3/h
Head: 4-60m
Pressure: Max. 250psi
Density: Max.1.35
Materials: Hyper chrome alloy, Rubber, Polyurethane etc.
¥ 0.00
China Slurry Pump Impellers
Pump model: AH, HH, L, M, SP, G/GH, AF
No. of Vanes: 2, 3, 4, 5, 6
Type: Closed, Semi-open, Open
Materials:  A05, A07,  A33, A49
¥ 0.00
China Slurry Pump Volute Liners
Pump model: AH, HH, L, M, SP, G/GH, AF
Materials: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
¥ 0.00
China  Slurry Pump Bearing Assembly Code
Bearing Housing: HT250
Bearing: ZWZ, SKF, TIMKEN etc
Shaft: 40CrMo
Shaft Sleeve: SS420
Matched Model: AH, HH, L, M, SP(R), G/GH, AF
¥ 0.00
China Slurry Pump Gland Assembly
Materials: K24, G01, C23, C21, D21 etc
Part code: 044
Pump model: AH(R), HH, L(R), G(H) etc
¥ 0.00
China Slurry Pump Bearing Housing
Part No.: 004
Materials: Hard Iron, OEM
Models: AH, HH, L, M, G, GH, etc
¥ 0.00
China Slurry Pump Stuffing Box
Materials: HT250, High chrome etc
Part code: 078
Pump model: AH(R), HH, L(R), G(H) etc
¥ 0.00
China Slurry pump Lantern Ring
Materials: C21,C23,P50,P05 etc
Part code: 063
Pump model: AH(R), HH, L(R), G(H) etc
¥ 0.00
China Slurry Pump Bearing Code
Materials: Bearing steel, Carbon steel, Stainless steel
Part code: 009
Replaced model: AH(R), HH, L(R), G(H), SP(R), AF etc
¥ 0.00

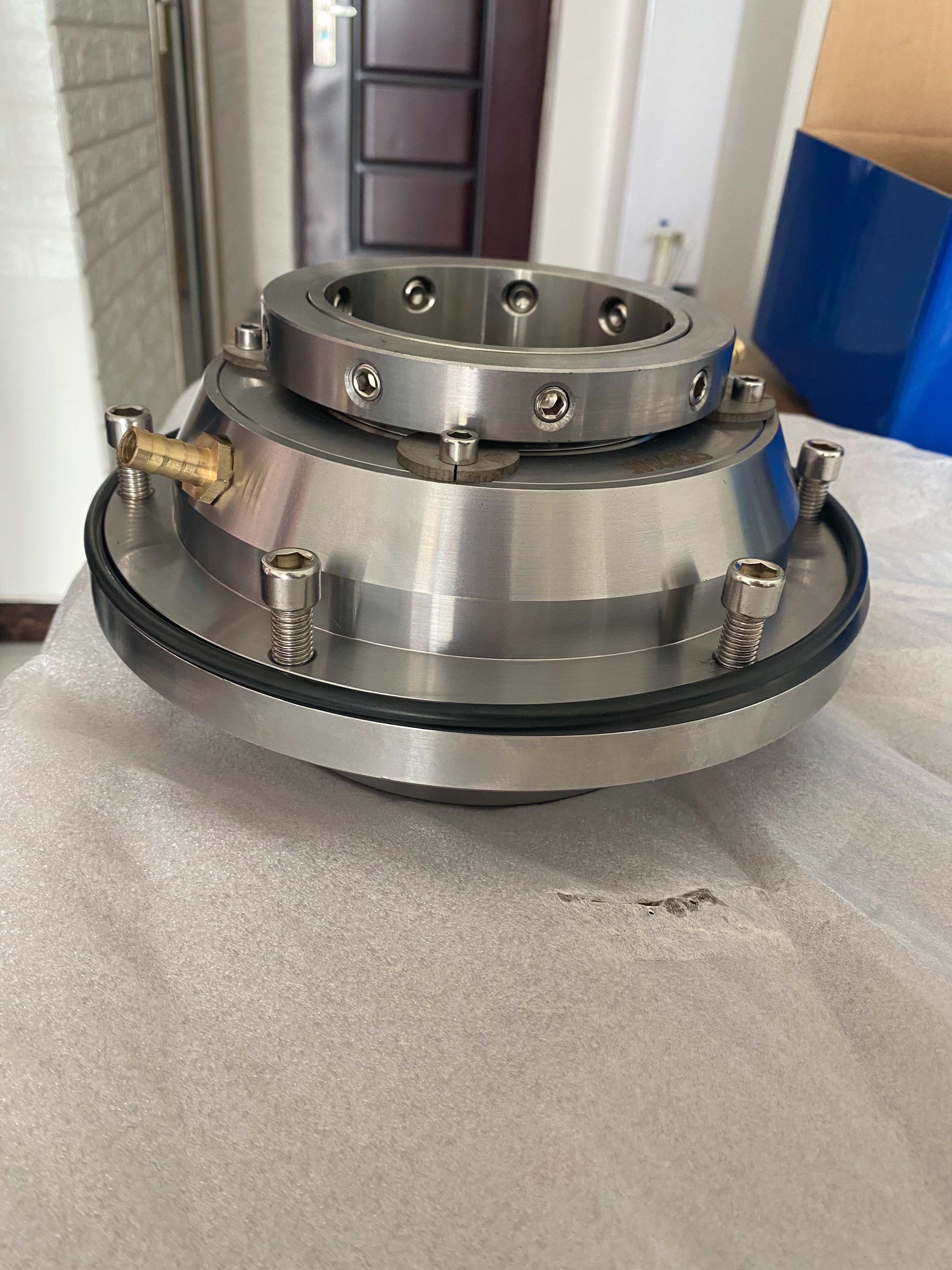

China Slurry Pump Mechanical Seal
Model: TJ, THJ, ZWJ, TGJ, L, DT
Pressure: 0-4MPa
Linear velocity: ≤15m/s
Density-: ≤40%
Shaft diameter: Φ20 –Φ 280
Temperature: -20-160°C
Materials: 2Cr13, SS316L
Medium: liquid with solid or crystal
Fit pump models: AH, HH, L, M, G/GH etc
¥ 0.00
China Slurry Pump Expeller Ring
Materials:G01, A05, R55 etc
Part code: 029
Pump model: AH(R), HH, L(R), G(H) etc
¥ 0.00
China Slurry Pump Expeller
Materials: G01, A05 ,R55 etc
Part code: 028
Pump model: AH(R), HH, L(R), G(H) etc
¥ 0.00
China Slurry Pump Fame
Materials: HT250, QT500 etc
Part code: 003
Frame Type: A, B, C, D, E, R, F, G, ST, T, TU, H
Replaced model: AH(R), HH, L(R), G(H), SP(R), AF
¥ 0.00
China Slurry Pump Frame Plate
Materials: HT250, QT500, High chrome
Part code: 032
Matched model: AH, HH, L, M, G/GH, SP(R), AF
¥ 0.00
China Slurry Pump Cover Plate
Materials: HT250, QT500, High chrome
Part code: 013
Matched model: AH, HH, L, M, G/GH, SP(R), AF
¥ 0.00
China Slurry Pump Shaft
Materials: 45#, SS316L etc
Part code: 073
Matched model: AH, HH, L, M, G/GH, SP(R), AF
¥ 0.00
China Slurry Pump Shaft Sleeve
Materials: SS420, SS304, SS316L, Ceramic etc
Part code: 075, 076
Matched model: AH, HH, L, M, G/GH, SP(R), AF
¥ 0.00
China  Slurry Pump Frame Plate Liner Insert
Pump model: AH, HH, L, M, SP, G/GH, AF
Parts no.: *041
Materials: A05,R55,U01
¥ 0.00
China Slurry Pump Throat Bush
Pump model: AH, HH, L, M, SP, G/GH, AF
Parts no.: *083
Materials: A05,A07,A49,A33
¥ 0.00
China Slurry Pump Packing
C111 Packings
D111 Packings
E111 Packings
F111 Packings
S111 Packings
¥ 0.00
China Slurry Pump Rubber Frame Plate Liner
Part Code: 036
Materials: Natural rubber, Synthetic rubber, Polyurethane etc
Replaced model: AHR, LR, MR, etc
¥ 0.00

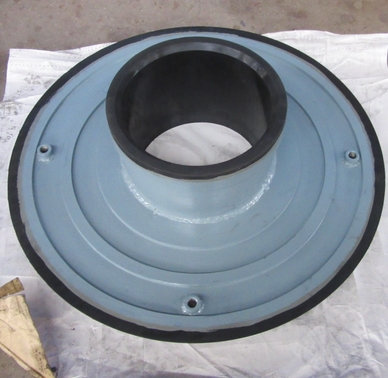

China Rubber Cover Pate Liner
1.5/1B-AH to 4/3D-AH Part code: 017
6/4D-AH to 20/18TU-AH Part code: 018
Materials: Natural rubber, Synthetic rubber, Polyurethane etc
Available model: AHR, LR etc
¥ 0.00
China 1.5/1B-AH Slurry Pump
Size: 1.5" x 1"
Capacity: 12.6-28.8m3/h
Head: 6-68m
Speed: 1200-3800rpm
NPSHr: 2-4m
Eff.: 40%
Power: Max.15kw
Handling solids: 14mm
Materials: A05, A07, A33, A49, A51, A61, R08, R26, R55, U01, U38 etc
¥ 0.00
China 2/1.5B-AH Slurry Pump
Size: 2" x 1.5"
Capacity: 32.4-72m3/h
Head: 6-58m
Speed: 1200-3200rpm
NPSHr: 3.5-8m
Eff.: 45%
Power: Max.15kw
Handling solids: 19mm
Materials: A05, A07, A33, A49, A51, A61, R08, R26, R55, U01 U38 etc
¥ 0.00
China 3/2C-AH Slurry Pump
Size: 3" x 2"
Capacity: 39.6-86.4m3/h
Head: 12-64m
Speed: 1300-2700rpm
NPSHr: 4-6m
Eff.: 55%
Power: Max.30kw
Handling solids: 25mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
¥ 0.00
China 4x3C-AH Slurry Pump
Size: 4" x 3"
Capacity: 86.4-198m3/h
Head: 9-52m
Speed: 1000-2200rpm
NPSHr: 4-6m
Eff.: 71%
Power: Max.30kw
Handling solids: 28mm
Materials: A05, A07, A33, A49, A51, A61, R08, R26, R55, U01 U38 etc
¥ 0.00
China 6x4D-AH Slurry Pump
Size: 6" x 4"
Capacity: 162-360m3/h
Head: 12-56m
Speed: 800-1550rpm
NPSHr: 5-8m
Eff.: 65%
Power: Max.60kw
Handling solids: 44mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
¥ 0.00
China 8x6E-AH Slurry Pump
Size: 8" x 6"
Capacity: 360-828m3/h
Head: 10-61m
Speed: 500-1140rpm
NPSHr: 2-9m
Eff.: 72%
Power: Max.120kw
Handling solids: 63mm
Materials: High chrome alloy, Rubber, Polyurethane, Ceramic etc
¥ 0.00
China  10x8ST-AH Centrifugal Slurry Pumps
Size: 10" x 8"
Capacity: 612-1368m3/h
Head: 11-61m
Speed: 400-850rpm
NPSHr: 4-10m
Eff.: 71%
Power: Max. 560kw
Handling solids: 76mm
Materials: Hyper chrome alloy, Rubber, Polyurethane, Ceramic etc
¥ 0.00
China 12x10ST-AH Slurry Pump
Size: 12" x 10"
Capacity: 936-1980m3/h
Head: 7-68m
Speed: 300-800rpm
NPSHr: 2.5-7.5m
Eff.: 82%
Power: Max. 560kw
Handling solids: 86mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Materials: A05, A07, A33, A49, A51, A61, R08, R2
¥ 0.00
China  14x12ST-AH Slurry Pump
Size: 14" x 12"
Capacity: 1152-2772m3/h
Head: 13-63m
Speed: 300-600rpm
NPSHr: 3-10m
Eff.: 77%
Power: Max. 560kw
Handling solids: 90mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
¥ 0.00
China 40PV-SP Vertical Slurry Pump
Size: 40mm
Capacity: 19.44-43.2m3/h
Head: 4.5-28.5m
Max. power: 15kw
Handing solids: 12mm
Speed:1000-2000rpm
Submerged length:900-2500mm
Materials:A05 alloy, A49alloy,Rubber, Polyurethane etc
¥ 0.00
China 65QV-SP Vertical Slurry Pump
Size: 65mm
Capacity: 18-113m3/h
Head: 5-31.5m
Max.power:30kw
Handing solids: 15mm
Speed:700-1500rpm
Submerged length:900-2800mm
Materials:High chrome alloy, Rubber, Polyurethane etc
¥ 0.00
China 100RV-SP Vertical Slurry Pump
Size: 100mm
Capacity: 40-289m3/h
Head: 5-36m
Max.power:75kw
Handing solids: 32mm
Speed:500-1200rpm
Submerged length:1200-3200mm
Materials:A05 alloy,A49alloy,R55Rubber, Polyurethane etc
¥ 0.00
China 150SV-SP Vertical Slurry Pump
Size: 150mm
Capacity: 108-576m3/h
Head: 8.5-40m
Max.power: 110kw
Handing solids: 45mm
Speed:500-1000rpm
Submerged length:1500-3600mm
Materials:High chrome alloy, Rubber, Polyurethane etc
¥ 0.00
China 200SV-SP Vertical Slurry Pump
Size: 200mm
Capacity: 189-891m3/h
Head: 6.5-37m
Max.power: 110kw
Handing solids: 65mm
Speed:400-850rpm
Submerged length:1500-3600mm
Materials:High chrome alloy, Rubber, Polyurethane etc
¥ 0.00
China 250TV-SP Vertical Slurry Pump
Size: 250mm
Capacity: 261-1089m3/h
Head: 7-33.5m
Max.power: 200kw
Handing solids: 65mm
Speed:400-750rpm
Submerged length:1800-3600mm
Materials:A05 alloy, R55Rubber, Polyurethane etc
¥ 0.00
China 300TV-SP Vertical Slurry Pump
Size: 300mm
Capacity: 288-1267m3/h
Head: 6-33m
Max.power: 200kw
Handing solids: 65mm
Speed:350-700rpm
Submerged length:1800-3600mm
Materials:A05, R55, Polyurethane etc
¥ 0.00
