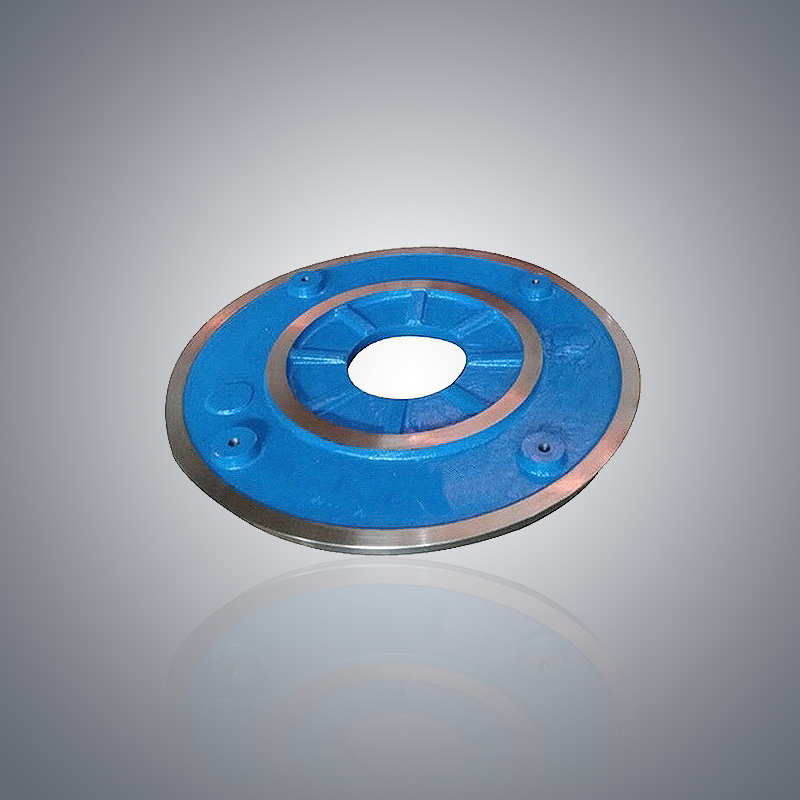

China  Slurry Pump Frame Plate Liner Insert

China  Slurry Pump Frame Plate Liner Insert is a wear part of slurry pumps, It is also called for slurry pump back liner based on locating position in slurry pump structure, Frame plate liner insert forms a pump chamber with throat bush and volute liner where the slurry would flow through them, China offers frame plate liner inserts are interchangeable with China pump frame plate liner inserts with A05, R55, U01 for different working condition.

China Slurry Pump Frame Plate Liner Insert Code:

Frame Plate Liner Insert Code

China AH Slurry Pumps

Materials

B1041

1.5/1B-AH

A05,A49,R55,U01

B15041

2/1.5B-AH

A05,A49,R55,U01

C2041

3/2C-AH

A05,A49,R55,U01

D3041

4/3C-AH, 4/3D-AH

A05,A49,R55,U01

E4041

6/4D-AH, 6/4E-AH

A05,A49,R55,U01

F6041

8/6E-AH, 8/6F-AH, 8/6R-AH

A05,A49,R55,U01

G8041

10/8ST-AH

A05,A49,R55,U01

G10041

12/10ST-AH

A05,A49,R55,U01

G12041

14/12F-AH,14/12ST-AH

A05,A49,R55,U01

H14041

16/14TU-AH

A05,A49,R55,U01

FPL Insert

China HH Slurry Pumps

Materials

CH1041

1.5/1C-HH

A05,A49,R55,U01

DH2041

3/2D-HH

A05,A49,R55,U01

EH3041

4/3E-HH

A05,A49,R55,U01

FH4041

6/4F-HH

A05,A49,R55,U01

FH6041

6S-H, 8/6S-H

A05,A49,R55,U01

FPL Insert

China L Slurry Pumps

Materials

175041

20A-L

A05,A49,R55,U01

32056

50B-L

A05,A49,R55,U01

43041

75C-L

A05,A49,R55,U01

64041

100D-L

A05,A49,R55,U01

86041

150E-L

A05,A49,R55,U01

108041

200E-L

A05,A49,R55,U01

SL30041

300S-L

A05,A49,R55,U01

SL35041

350S-L

A05,A49,R55,U01

STL40041

400ST-L

A05,A49,R55,U01

STL45041

450ST-L

A05,A49,R55,U01

TUL55041

550TU-L

A05,A49,R55,U01

FPL Insert

China G(H) Gravel Pumps

Materials

DG4041

6/4D-G, 6/4E-G

A05

EG6041

8/6E-G

A05

FG8041

10/8F-G, 10/8S-G

A05

FG10041

12/10G-G

A05

GG12041

14/12G-G

A05

FGH8041

10/8F-GH

A05

SGGH10041

12/10G-GH

A05

TG14041

16/14TU-GH

A05

FPL Insert

China SP Vertical Slurry Pumps

Materials

SP4041

40PV-SP

A05,A49,R55,U01

SP65041

65QV-SP

A05,A49,R55,U01

SP10041

100RV-SP

A05,A49,R55,U01

SP15041

150SV-SP

A05,A49,R55,U01

SP20041

200SV-SP

A05,A49,R55,U01

SP25041

250TV-SP

A05,A49,R55,U01

SP30041

300TV-SP

A05,A49,R55,U01



Home    Slurry Pump Spare Parts    China  Slurry Pump Frame Plate Liner Insert
sale@cnoempump.com

China  Slurry Pump Frame Plate Liner Insert

Pump model: AH, HH, L, M, SP, G/GH, AF
Parts no.: *041
Materials: A05,R55,U01
