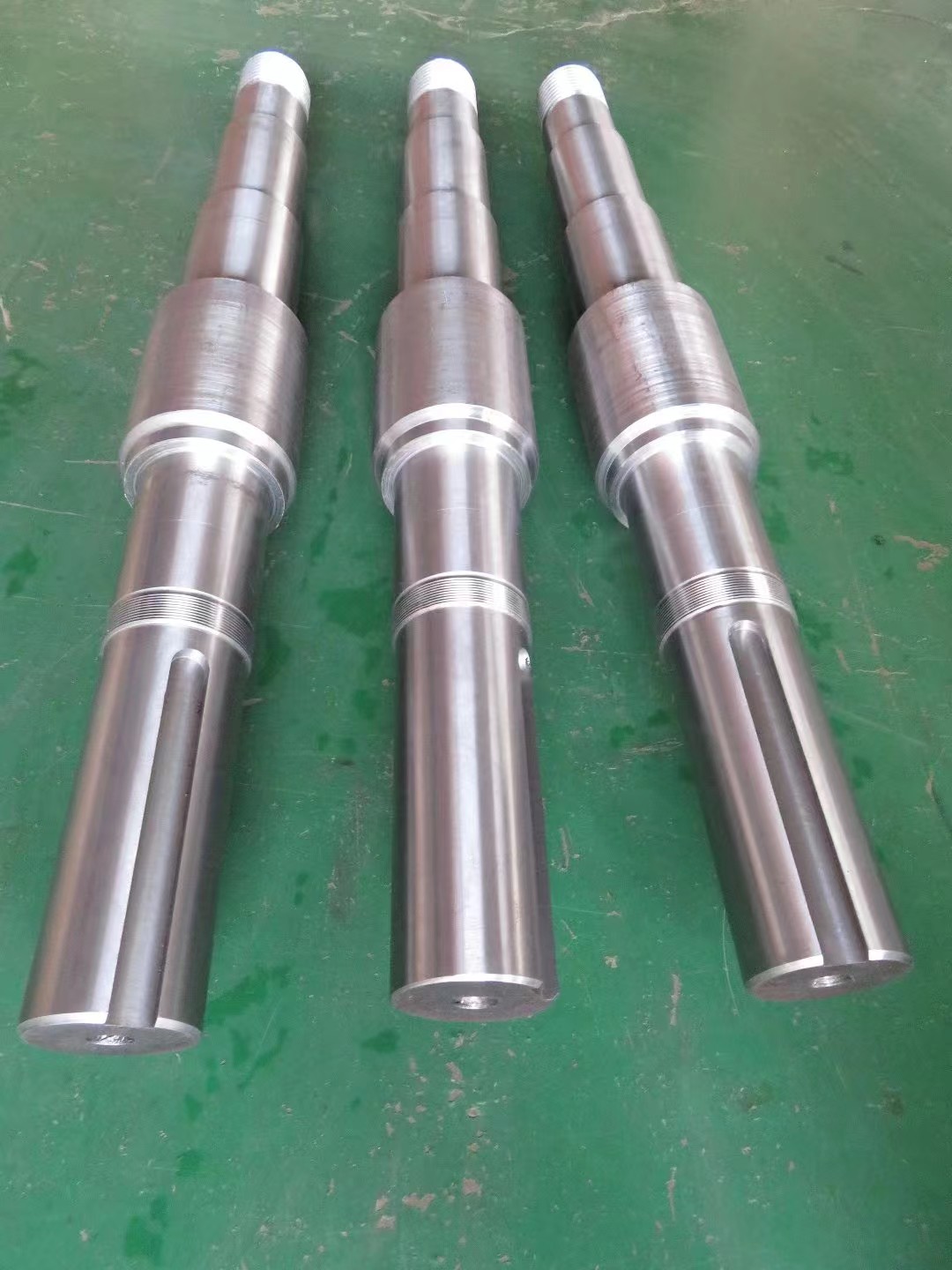

China Slurry Pump Shaft
China Slurry Pump Shaft is a large diameter with high strength shaft with short overhang minimizes deflection and contributes to long bearing life. It is most important part for bearing assembly. The shaft is to connect the slurry pump impeller and motor as a complete pump working system. Its stability will directly affect pump operation and work life.
China Slurry Pump Shaft Code:
|
Slurry Pump Shaft |
AH Slurry Pump |
Shaft Materials |
|
B073M |
1.5/1B-AH, 2/1.5B-AH |
45#, SS316L |
|
C073M |
3/2C-AH |
45#, SS316L |
|
CAM073M |
4/3C-AH |
45#, SS316L |
|
D073M |
4/3D-AH |
45#, SS316L |
|
DAM073M |
6/4D-AH |
45#, SS316L |
|
E003M |
6/4E-AH |
45#, SS316L |
|
EAM003M |
8/6E-AH |
45#, SS316L |
|
R073M |
8/6R-AH |
45#, SS316L |
|
FAM073M |
8/6F-AH, 10/8F-AH, 12/10F-AH |
45#, SS316L |
|
SH073M |
10/8ST-AH, 12/10ST-AH, 14/12ST-AH |
45#, SS316L |
|
TH073M |
16/14TU-AH, 18/16TU-AH, 20/18TU |
45#, SS316L |
|
Slurry Pump Shaft |
HH Slurry Pump |
Shaft Materials |
|
CAM073M |
1.5/1C-HH |
45#, SS316L |
|
DAM073M |
3/2D-HH |
45#, SS316L |
|
EAM073M |
4/3E-HH |
45#, SS316L |
|
FAM073M |
6/4F-HH |
45#, SS316L |
|
Slurry Pump Shaft |
M Slurry Pump |
Shaft Materials |
|
EAM073M |
10/8E-M |
45#, SS316L |
|
R073M |
10/8R-M |
45#, SS316L |
|
Slurry Pump Shaft |
L Slurry Pump |
Shaft Materials |
|
ASC073M |
20A-L |
45#, SS316L |
|
BSC073M |
50B-L |
45#, SS316L |
|
CAM073M |
75C-L |
45#, SS316L |
|
DSC073M |
100D-L |
45#, SS316L |
|
ESC073M |
150E-L |
45#, SS316L |
|
S073M |
300S-L |
45#, SS316L |
|
Gravel Pump Shaft |
G(H) Gravel Pump |
Shaft Materials |
|
DAM073M |
6/4D-G |
45#, SS316L |
|
EAM073M |
8/6E-G |
45#, SS316L |
|
F073M |
10/8F-G |
45#, SS316L |
|
S073M |
10/8S-G, 10/8S-GH |
45#, SS316L |
|
G073M |
12/10G-G, 14/12G-G, 12/10G-GH |
45#, SS316L |
|
TH073M |
16/14TU-GH |
45#, SS316L |
China Slurry Pump Shaft
Part code: 073
Matched model: AH, HH, L, M, G/GH, SP(R), AF
