China Slurry Pump Fame

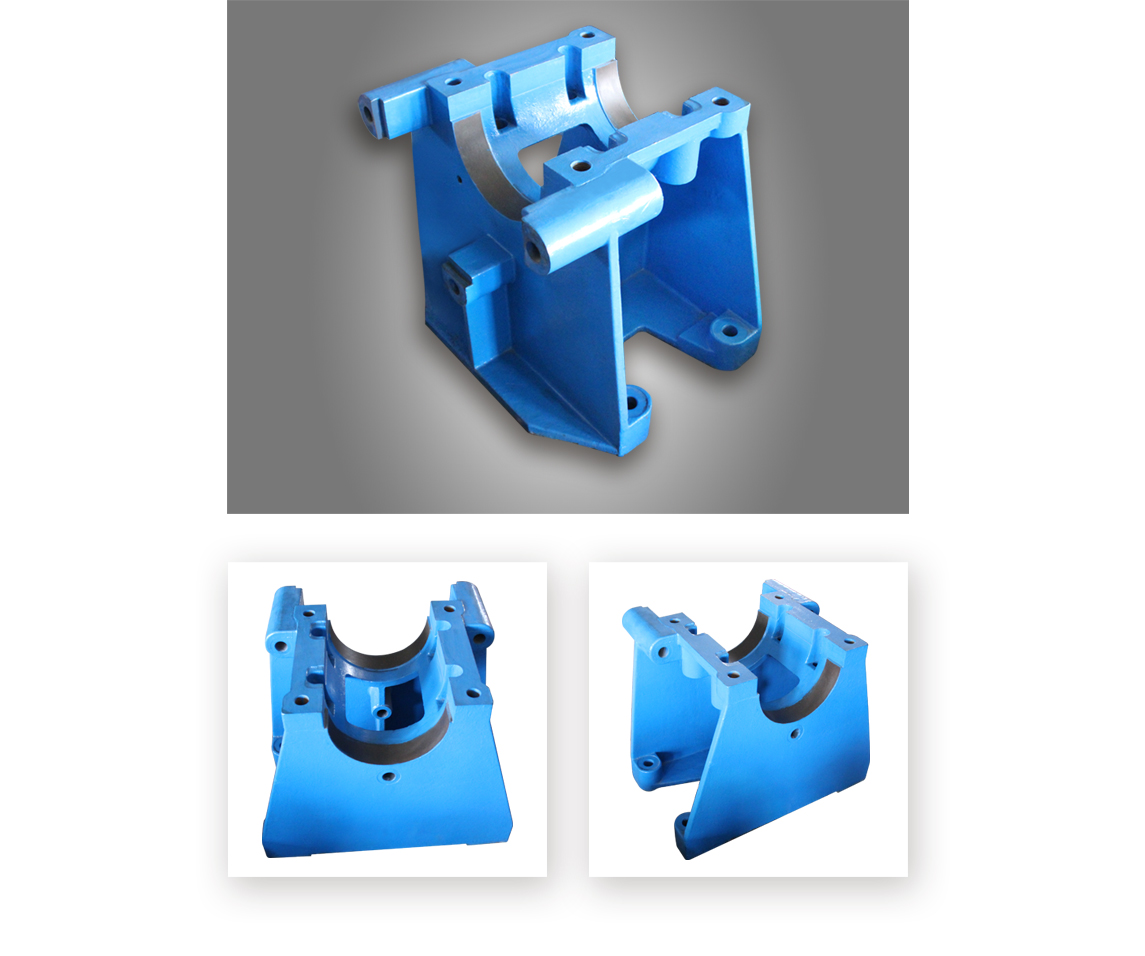

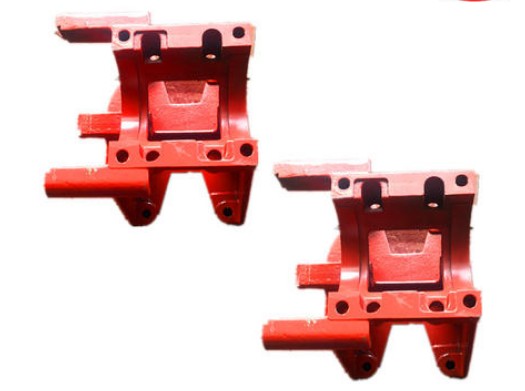

China Slurry Pump Fame adopts robust one-piece frame type, The one-piece frame cradles the cartridge type bearing and shaft assembly, As a main part which supporting the force from motor to pump through bearing assembly, Usually, The frame stands on slurry pump base or ground, So strong slurry pump frame play a key role to maintain stability of slurry pump during operating. China offers slurry pump frame in ductile iron and grey iron materials for higher strength requirement in severe work conditions.

China Slurry Pump Frame Type:

Frame type

A

B

C

D

E

R

F

G

ST

TU

Max. Power (kw)

7.5

15

30

60

120

300

260

600

560

1200

Frame Weight (kg)

17

24

45

77.5

154

228

555

1006

546

1156

Amount of Shaft Sealing Water (l/s)

0.15

0.25

0.35

0.55

0.70

0.70

0.70

1.20

1.20

1.60

China Slurry Pump Frame Code:



Frame Code

AH Slurry Pump

Materials

B003M

1.5/1B-AH, 2/1.5B-AH

HT250, QT500

C003M

3/2C-AH, 4/3C-AH

HT250, QT500

D003M

4/3D-AH, 6/4D-AH

HT250, QT500

E003M

6/4E-AH, 8/6E-AH

HT250, QT500

R003M

8/6R-AH

HT250, QT500

FAM003M

8/6F-AH, 10/8F-AH, 12/10F-AH

HT250, QT500

ST003M

10/8ST-AH, 12/10ST-AH, 14/12ST-AH

HT250, QT500

TU003

16/14TU-AH, 18/16TU-AH, 20/18TU

HT250, QT500

Frame Code

HH Slurry Pump

Materials

C003M

1.5/1C-HH

HT250, QT500

D003M

3/2D-HH

HT250, QT500

E003M

4/3E-HH

HT250, QT500

F003M

6/4F-HH

HT250, QT500

Frame Code

M Slurry Pump

Materials

E003M

10/8E-M

HT250, QT500

R003M

10/8R-M

HT250, QT500

Frame Code

L Slurry Pump

Materials

A003M

20A-L

HT250, QT500

B003M

50B-L

HT250, QT500

C003M

75C-L

HT250, QT500

D003M

100D-L

HT250, QT500

E003M

150E-L

HT250, QT500

S003M

300S-L

HT250, QT500

Frame Code

G(H) Gravel Pump

Materials

D003M

6/4D-G

HT250, QT500

E003M

8/6E-G

HT250, QT500

F003M

10/8F-G

HT250, QT500

S003M

10/8S-G, 10/8S-GH

HT250, QT500

G003M

12/10G-G, 14/12G-G, 12/10G-GH

HT250, QT500

TU003

16/14TU-GH

HT250, QT500

Home    Slurry Pump Spare Parts    China Slurry Pump Fame
sale@cnoempump.com

China Slurry Pump Fame

Materials: HT250, QT500 etc
Part code: 003
Frame Type: A, B, C, D, E, R, F, G, ST, T, TU, H
Replaced model: AH(R), HH, L(R), G(H), SP(R), AF
