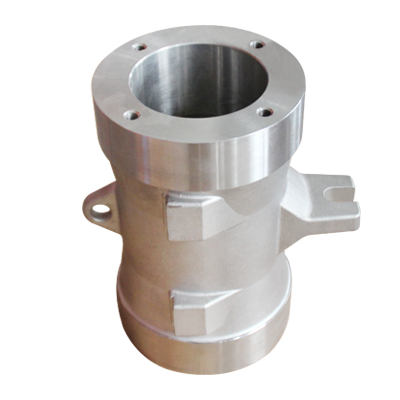

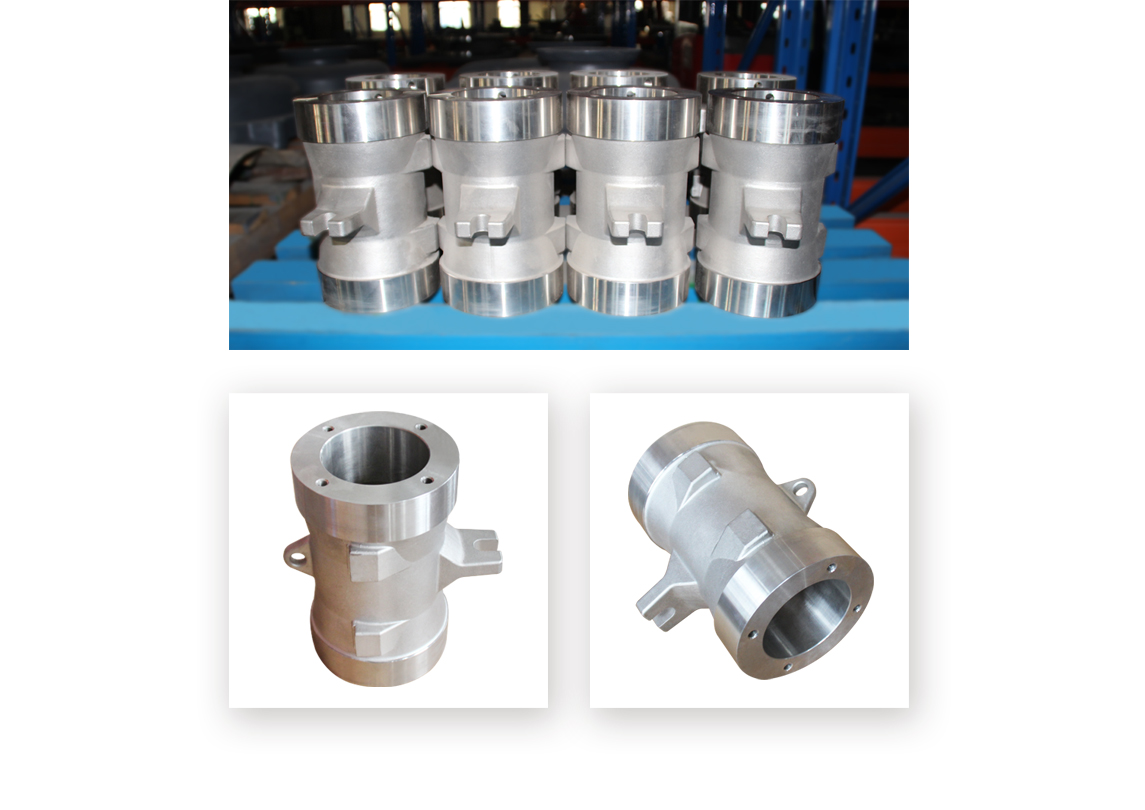

China Slurry Pump Bearing Housing

China Slurry Pump Bearing Housing is one most important part of bearing assembly for slurry pumps, It contains shaft and bearings, There are four clamp bolts through the base which fasten the slurry pump bearing housing.

Bearing Housing with Shaft for Bearing Assembly of Heavy Duty Slurry Pumps. Introduction: Bearing assembly is an assembled part which comprises parts like shaft, bearing housing, bearings, end cover, labyrinth, etc. and is the rotor part of a slurry pump.Heavy duty roller bearings are housed in a removeable bearing cartridge. Cartridge type with grease lubricated roller bearings designed for more than 60 000 operating hours.

Slurry pump shaft, slurry pump bearing housing, slurry pump bearings, slurry pump end cover, and slurry pump labyrinth, etc.assembled a slurry pump bearing assembly, and is the rotor parts of slurry pump. The bearings installed are branded, ZWZ, HRB, SKF, TIMKEN.

China Slurry Pump Bearing Housing Code:

Bearing Housing

Pump Models

Material

B004M

1.5/1B-AH, 2/1.5B-AH

Hard iron

C004M

3/2C-AH, 4/3C-AH, 75C-L, 1.5/1C-HH

Hard iron

CC004M

3/2CC-AH, 4/3CC-AH, 1.5/1CC-HH

Hard iron

D004M

4/3D-AH, 6/4D-AH, 100D-L, 3/2D-HH, 6/4D-G

Hard iron

DD004M

4/3DD-AH, 6/4DD-AH, 3/2DD-HH

Hard iron

E004M

6/4E-AH, 8/6E-AH, 150E-L, 10/8E-M, 4/3E-HH, 8/6E-G

Hard iron

EE004M

6/4EE-AH, 8/6EE-AH, 10/8EE-M, 4/3EE-HH

Hard iron

F004M

8/6F-AH, 10/8F-M, 12/10F-M, 6/4F-HH, 10/8F-G, 10/8F-AH, 12/10F-AH, 14/12F-AH

Hard iron

FF004M

12/10FF-M, 10/8FF-AH, 12/10FF-AH, 14/12FF-AH

Hard iron

G004M

12/10G-G, 14/12G-G, 12/10G-GH

Hard iron

R004M

8/6R-AH, 10/8R-M

Hard iron

S004M

10/8ST-AH, 12/10ST-AH, 14/12ST-AH, 400ST-L, 450ST-L, 300S-L, 350S-L, 10/8S-G, 10/8S-GH

Hard iron

T004M

14/12ST-AH, 14/12T-G, 18/16T-G, 16/14TU-AH, 550TU-L, 650TU-L, 16/14TU-GH

Hard iron

Home    Slurry Pump Spare Parts    China Slurry Pump Bearing Housing
sale@cnoempump.com

China Slurry Pump Bearing Housing

Part No.: 004
Materials: Hard Iron, OEM
Models: AH, HH, L, M, G, GH, etc
