China Slurry Pump Bearing Assembly Code

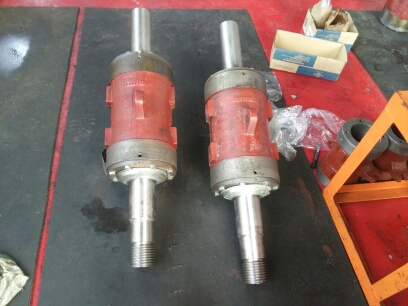

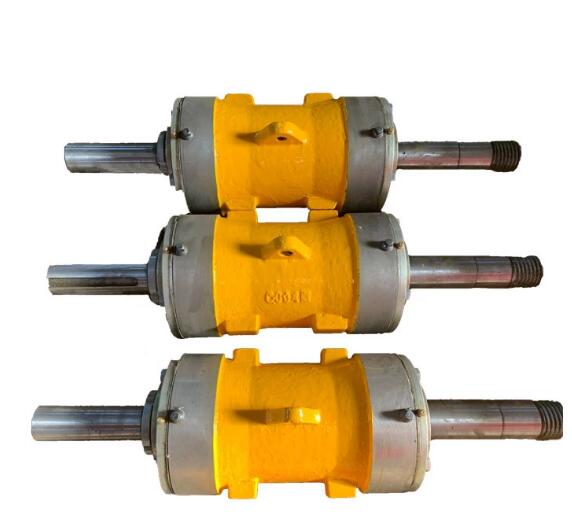

China Slurry Pump Bearing Assembly also called rotor assembly, It is a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame. It is most important part for drive power unit. The bearing assembly is to connect the slurry pump and motor as a complete pump working system. Its stability will directly affect slurry pump operation and worklife.
China Slurry Pump Bearing Assembly Drawing:
China Slurry Pump Bearing Assembly Code:
|
Bearing Assembly |
AH Slurry Pump |
Slurry Pump Bearing Brand |
|
B005M |
1.5/1B-AH, 2/1.5B-AH |
ZWZ, SKF, TIMKEN Brand |
|
C005M |
3/2C-AH, 4/3C-AH |
ZWZ, SKF, TIMKEN Brand |
|
D005M |
4/3D-AH, 6/4D-AH |
ZWZ, SKF, TIMKEN Brand |
|

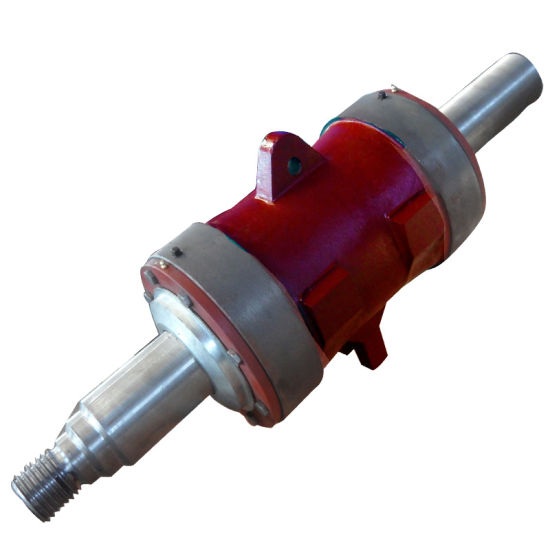

E005M |
6/4E-AH, 8/6E-AH |
ZWZ, SKF, TIMKEN Brand |
|
R005M |
8/6R-AH |
ZWZ, SKF, TIMKEN Brand |
|

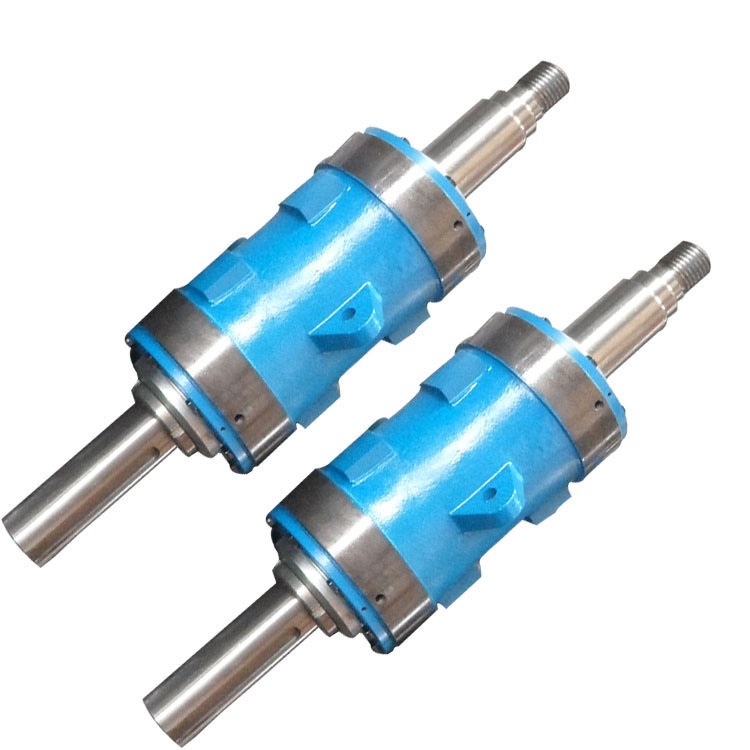

FAM005M |
8/6F-AH, 10/8F-AH, 12/10F-AH |
ZWZ, SKF, TIMKEN Brand |
|
SH005M |
10/8ST-AH, 12/10ST-AH, 14/12ST-AH |
ZWZ, SKF, TIMKEN Brand |
|
TH005M |
16/14TU-AH, 18/16TU-AH, 20/18TU |
ZWZ, SKF, TIMKEN Brand |
|
Bearing Assembly |
HH Slurry Pump |
Slurry Pump Bearing Brand |
|
CAM005M |
1.5/1C-HH |
ZWZ, SKF, TIMKEN Brand |
|
DAM005M |
3/2D-HH |
ZWZ, SKF, TIMKEN Brand |
|
EAM005M |
4/3E-HH |
ZWZ, SKF, TIMKEN Brand |
|
FAM005M |
6/4F-HH |
ZWZ, SKF, TIMKEN Brand |
|
Bearing Assembly |
M Slurry Pump |
Slurry Pump Bearing Brand |
|
EAM005M |
10/8E-M |
ZWZ, SKF, TIMKEN Brand |
|
R005M |
10/8R-M |
ZWZ, SKF, TIMKEN Brand |
|
Bearing Assembly |
L Slurry Pump |
Slurry Pump Bearing Brand |
|
ASC005M |
20A-L |
ZWZ, SKF, TIMKEN Brand |
|
BSC005M |
50B-L |
ZWZ, SKF, TIMKEN Brand |
|
CAM005M |
75C-L |
ZWZ, SKF, TIMKEN Brand |
|
DSC005M |
100D-L |
ZWZ, SKF, TIMKEN Brand |
|
ESC005M |
150E-L |
ZWZ, SKF, TIMKEN Brand |
|
S005M |
300S-L |
ZWZ, SKF, TIMKEN Brand |
|
Bearing Assembly |
G(H) Gravel Pump |
Slurry Pump Bearing Brand |
|
DAM005M |
6/4D-G |
ZWZ, SKF, TIMKEN Brand |
|
EAM005M |
8/6E-G |
ZWZ, SKF, TIMKEN Brand |
|
F005M |
10/8F-G |
ZWZ, SKF, TIMKEN Brand |
|
S005-3M |
10/8S-G, 10/8S-GH |
ZWZ, SKF, TIMKEN Brand |
|
G005M |
12/10G-G, 14/12G-G, 12/10G-GH |
ZWZ, SKF, TIMKEN Brand |
|
TH005M |
16/14TU-GH |
ZWZ, SKF, TIMKEN Brand |
China Slurry Pump Bearing Assembly Code
Bearing: ZWZ, SKF, TIMKEN etc
Shaft: 40CrMo
Shaft Sleeve: SS420
Matched Model: AH, HH, L, M, SP(R), G/GH, AF
