China Slurry Pump Volute Liners

ꄴPrevious： China Slurry Pump Bearing Assembly Code

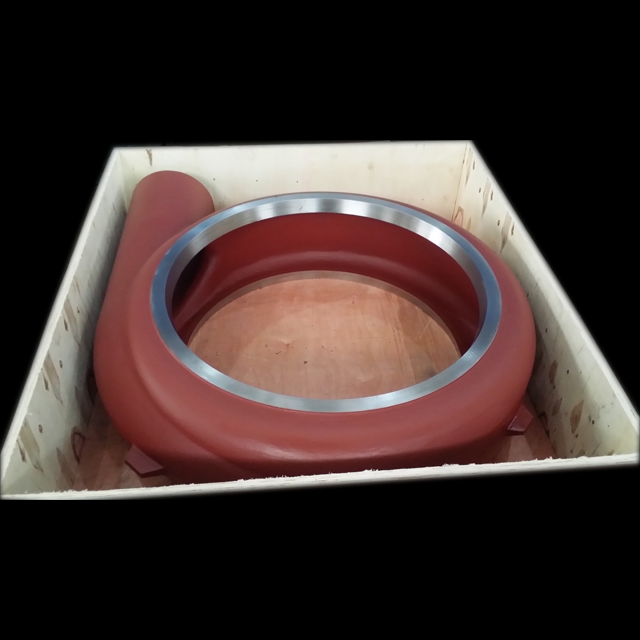

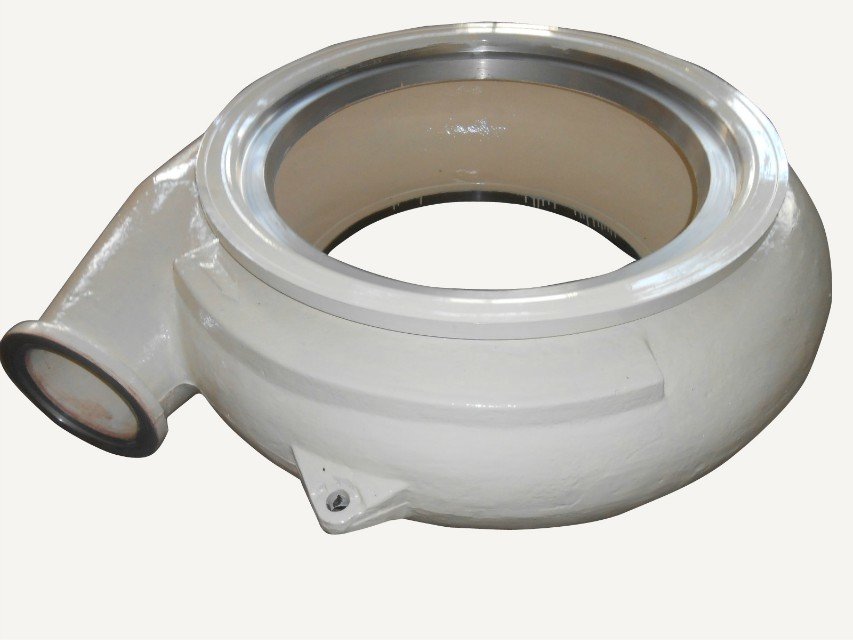

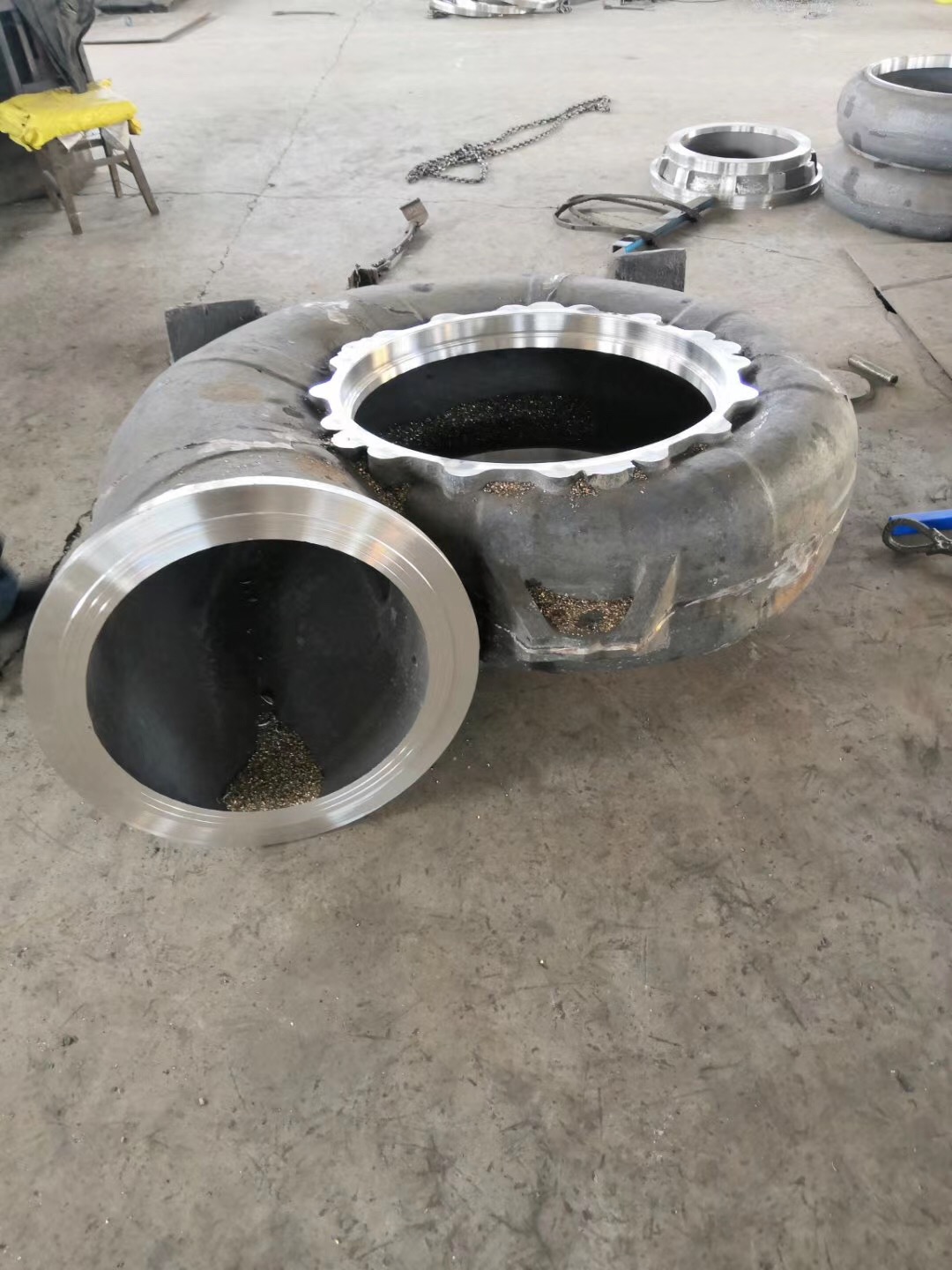

Slurry pump Volute Liner is an important wear part of slurry pumps. It forms a slurry pump chamber with throat bush and frame plate liner insert where the slurry would flow through them. Slurry volute Liner is a curved funnel increasing in area to the discharge port. It is often used with slurry pump impeller.

Slurry Pump Volute Liners Code:

Volute Liner Code	AH Slurry Pump	Volute Liner Materials
B1110	1.5/1B-AH	A05,A49,R55,U01
B15110	2/1.5B-AH	A05,A49,R55,U01
C2110	3/2C-AH	A05,A49,R55,U01
D3110	4/3C-AH, 4/3D-AH	A05,A49,R55,U01
E4110	6/4D-AH, 6/4E-AH	A05,A49,R55,U01
F6110	8/6E-AH, 8/6F-AH	A05,A49,R55,U01
G8110	10/8F-AH, 10/8ST-AH	A05,A49,R55,U01
G10110	12/10F-AH, 12/10ST-AH	A05,A49,R55,U01
G12110	14/12F-AH, 14/12ST-AH	A05,A49,R55,U01
H14110	16/14TU-AH	A05,A49,R55,U01
Volute Liner Code	HH Slurry Pump	Volute Liner Materials
CH1110	1.5/1C-HH	A05，A49
DH2110	3/2D-HH	A05，A49
EH3110	4/3E-HH	A05，A49
FH4110	6/4F-HH	A05，A49
FH4110	6-H	A05，A49
Volute Liner Code	M Slurry Pump	Volute Liner Materials
F8110	10/8E-M, 10/8F-M,10/8R-M	A05,A49,R55,U01
F10110	12/10E-M, 12/10F-M	A05,A49,R55,U01
Volute Liner Code	L Slurry Pump	Volute Liner Materials
AL2110	20A-L	A05,R55
BL5110	50B-L	A05,R55
CL75110	75C-L	A05,R55
DL10110	100D-L	A05,R55
EL15110	150E-L	A05,R55
SL20110	200E-L	A05,R55
SL30110	300S-L	A05,R55
SL35110	350S-L	A05,R55
TL40110	400ST-L	A05,R55
TL45110	450ST-L	A05,R55
UL55110	550TU-L	A05,R55
