China Slurry Pump Impellers
China Slurry Pump impeller is one of the most important parts of centrifugal slurry pump. Depending on site application, slurry pump impeller selection can be crucial to pump performance. Slurry applications can be especially hard on the impeller of slurry pump because of their abrasive nature. In order for your process to operate efficiently and stand up to the test of time, you must choose the proper slurry pump impeller.
China PUMP offers three different types of slurry pump impellers: open, closed, and semi-closed. Each has its own strengths and weaknesses, depending on the application. Some are better for solids handling, others are better for high efficiency. To learn more about the specifics of each type of slurry pump impeller.
China Slurry Pump Impeller Code:
|
Slurry Pump Impeller Code |
AH Slurry Pump |
Slurry Pump Materials Code |
|
B1127 |
1.5/1B-AH |
A05, A07, A33, A49 |
|
B15127 |
2/1.5B-AH |
A05, A07, A33, A49 |
|
C2147 |
3/2C-AH |
A05, A07, A33, A49 |
|
C2127 |
3/2C-AH |
A05, A07, A33, A49 |
|
C2051 |
3/2C-AH |
A05, A07, A33, A49 |
|
D3147 |
4/3C-AH, 4/3D-AH |
A05, A07, A33, A49 |
|
D3145HE1 |
4/3C-AH, 4/3D-AH |
A05, A07, A33, A49 |
|
D3021 |
4/3C-AH, 4/3D-AH |
A05, A07, A33, A49 |
|
E4147 |
6/4D-AH, 6/4E-AH |
A05, A07, A33, A49 |
|
E4056 |
6/4D-AH, 6/4E-AH |
A05, A07, A33, A49 |
|
E4058 |
6/4D-AH, 6/4E-AH |
A05, A07, A33, A49 |
|
F6147 |
8/6E-AH, 8/6F-AH, 8/6R-AH |
A05, A07, A33, A49 |
|
F6056 |
8/6E-AH, 8/6F-AH, 8/6R-AH |
A05, A07, A33, A49 |
|
F6021 |
8/6E-AH, 8/6F-AH, 8/6R-AH |
A05, A07, A33, A49 |
|
F6058HE1 |
8/6E-AH, 8/6F-AH, 8/6R-AH |
A05, A07, A33, A49 |
|
FAM8147 |
10/8F-AH |
A05, A07, A33, A49 |
|
G8147 |
10/8ST-AH |
A05, A07, A33, A49 |
|
FAM10147 |
12/10F-AH |
A05, A07, A33, A49 |
|
G10147 |
12/10ST-AH |
A05, A07, A33, A49 |
|
FAM12147 |
14/12F-AH |
A05, A07, A33, A49 |
|
G12147 |
14/12ST-AH |
A05, A07, A33, A49 |
|
GAM14147 |
16/14TU-AH |
A05, A07, A33, A49 |
|
Impeller Code |
L Slurry Pump |
Slurry Pump Materials Code |
|
175056 |
20A-L |
A05, A07, A33, A49 |
|
32056 |
50B-L |
A05, A07, A33, A49 |
|
43056 |
75C-L |
A05, A07, A33, A49 |
|
64056 |
100D-L |
A05, A07, A33, A49 |
|
86056 |
150E-L |
A05, A07, A33, A49 |
|
108056 |
200E-L |
A05, A07, A33, A49 |
|
SL30147 |
300S-L |
A05, A07, A33, A49 |
|
SL35147 |
350S-L |
A05, A07, A33, A49 |
|
STL40147 |
400ST-L |
A05, A07, A33, A49 |
|
STL45147 |
450ST-L |
A05, A07, A33, A49 |
|
TUL55147 |
550TU-L |
A05, A07, A33, A49 |
|
Impeller Code |
M Slurry Pump |
Slurry Pump Materials Code |
|
F8147 |
10/8E-M, 10/8F-M, 10/8R-M |
A05, A07, A33, A49 |
|
F10147 |
12/10F-M, 12/10R-M |
A05, A07, A33, A49 |
|
Impeller Code |
HH Slurry Pump |
Materials |
|
CH1127 |
1.5/1C-HH |
A05, A07, A33, A49 |
|
DH2147 |
3/2D-HH |
A05, A07, A33, A49 |
|
EH3147 |
4/3E-HH |
A05, A07, A33, A49 |
|
FH4147 |
6/4F-HH |
A05, A07, A33, A49 |
|
FH6147 |
6S-H, 8/6S-H |
A05, A07, A33, A49 |
|
Impeller Code |
G(H) Gravel Pump |
Slurry Pump Materials Code |
|
DG4137 |
6/4D-G, 6/4E-G |
A05, A07, A33, A49 |
|
EG6137 |
8/6E-G |
A05, A07, A33, A49 |
|
FG8137 |
10/8F-G, 10/8S-G |
A05, A07, A33, A49 |
|
FG10137 |
12/10G-G |
A05, A07, A33, A49 |
|
GG12137 |
14/12G-G |
A05, A07, A33, A49 |
|
FGH8137 |
10/8F-GH |
A05, A07, A33, A49 |
|
GGH10137 |
12/10G-GH |
A05, A07, A33, A49 |
|
TG14148 |
16/14TU-GH |
A05, A07, A33, A49 |
|
Impeller Code |
SP Vertical Slurry Pump |
Slurry Pump Materials Code |
|
SP4206 |
40PV-SP |
A05, A07, A33, A49 |
|
SP65206 |
65QV-SP |
A05, A07, A33, A49 |
|
SP10206 |
100RV-SP |
A05, A07, A33, A49 |
|
SP15206 |
150SV-SP |
A05, A07, A33, A49 |
|
SP20206 |
200SV-SP |
A05, A07, A33, A49 |
|
SP25206 |
250TV-SP |
A05, A07, A33, A49 |
|
SP30206 |
300TV-SP |
A05, A07, A33, A49 |

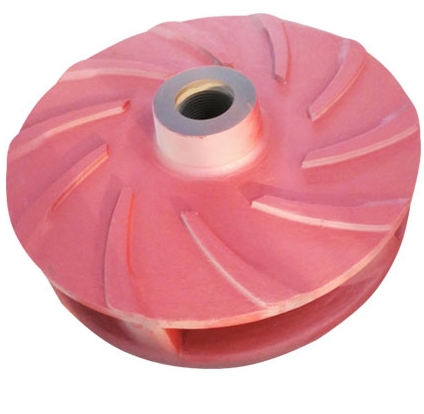

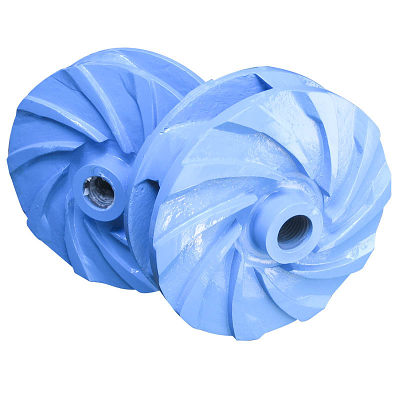

China Slurry Pump Impellers
No. of Vanes: 2, 3, 4, 5, 6
Type: Closed, Semi-open, Open
Materials: A05, A07, A33, A49
