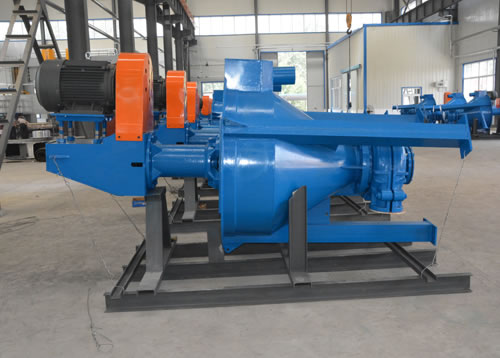

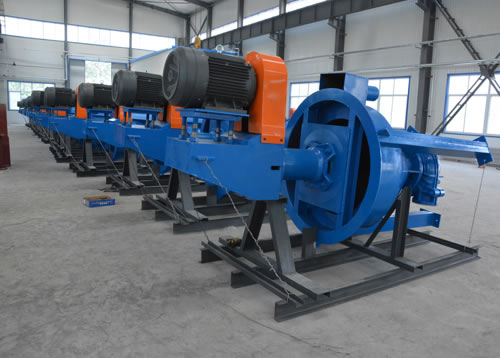

China AF Vertical Froth Slurry Pump

China AF Vertical Froth Slurry Pumps A large oversized inlet with a unique impeller inducer blade handles heavy froth and higher viscosity dense slurries with ease.

China  AF Vertical Froth Slurry Pump Design Features:

  • Large, open internal passages reduce internal velocities maximizing wear life resulting in lower operating costs
  • Unique impeller design for most difficult froth applications
  • Thick elastomer or metal bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and intermixability to reduce over all maintenance costs and maximize wear life
  •

China  AF Vertical Froth Slurry Pump Performance Parameters:

Model

Inlet

(mm)

Outlet

(mm)

Matching Power P

(kw)

Capacity Q

(m³/h)

Head H

(m)

Speed n

(r/min)

Eff. η

(% )

Impeller dia.

(mm)

2QV-AF

100

50

3-15

6-43

6-30

800-1800

45

229

3QV-AF

150

75

3-18.5

23-78

5-28

700-1500

55

268

4RV-AF

150

100

5.5-37

33-187

5-28

500-1050

55

397

6SV-AF

200

150

15-75

80-393

5-25

250-680

55

560

8SV-AF

250

200

37-110

126-575

5-26

350-650

55

-

China  AF Vertical Froth Slurry Pumps Structural Drawing:



China  AF Vertical Froth Slurry Pump Applications

  • Minerals froth handling

China  AF Vertical Froth Slurry Pump Processes

  • Slurry transportation
Home    AF Vertical Froth Slurry Pump    China AF Vertical Froth Slurry Pump
sale@cnoempump.com

China AF Vertical Froth Slurry Pump

Size: 2-8inch
Capacity: 6-575m3/h
Head: 5-30m
Max.power: 110kw
Materials: High chrome alloy, Rubber, Polyurethane etc.
