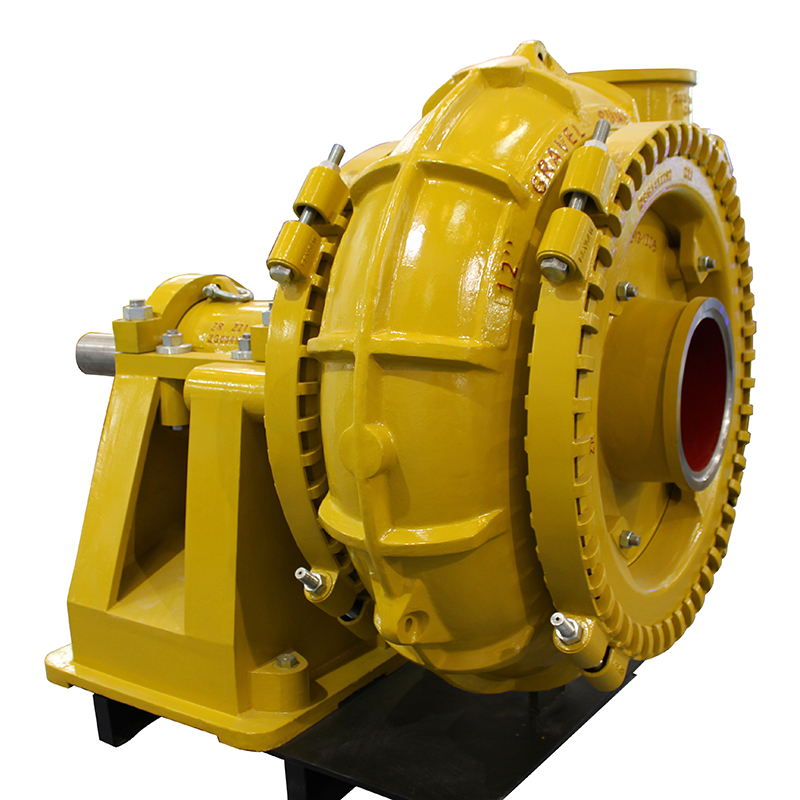

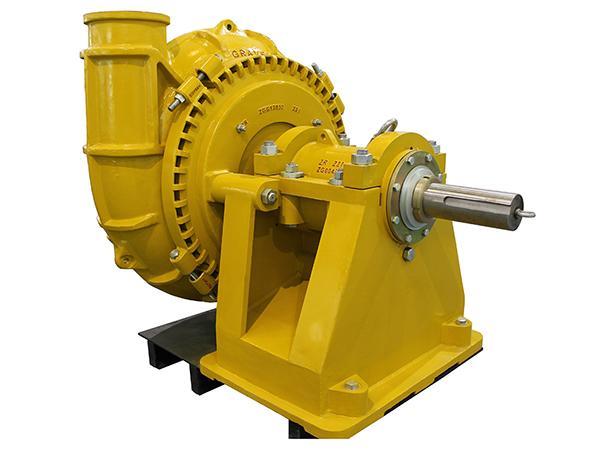

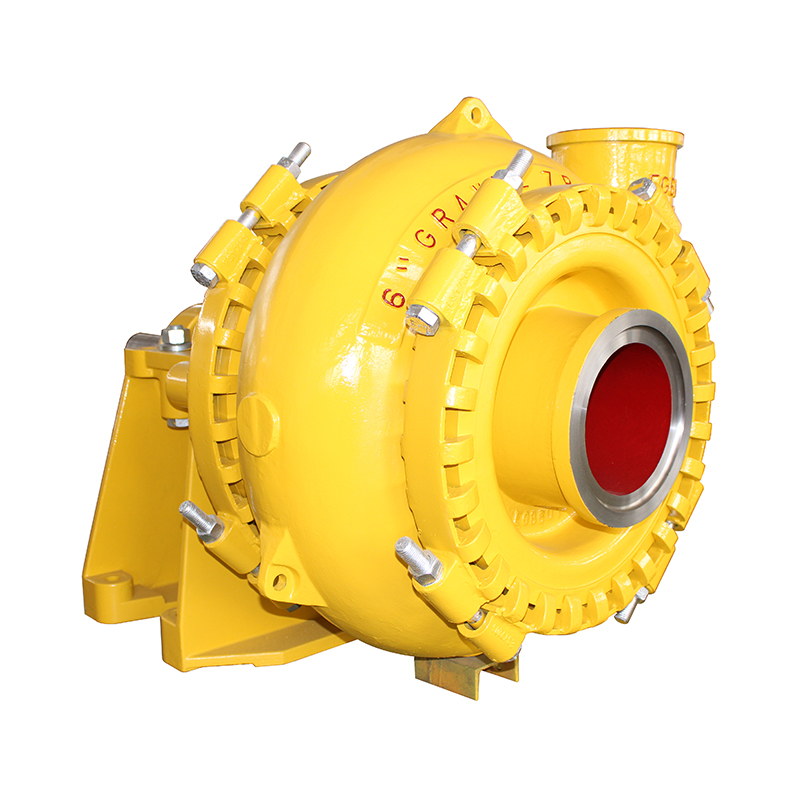

China G/GH Sand Gravel Pumps

China G/GH Sand Gravel Pumps are designed with larger impeller passage, which are suitable for the pumping of sand and gravel, mud and other slurries with bigger solid particles.

China G/GH Sand Gravel Pumps are single casing design (without inner liners). Bowl, door and impeller are all made of abrasion resistant alloy. The bowl and door are connected by special clamp structure. The pump discharge direction can be rotated in different angles. It’s easy to install and dismantle.

China G/GH Sand Gravel Pumps Applications

Dredging
Gravel pumping
Large particle solids transport

China G/GH Sand Gravel Pumps Processes

Slurry transportation
Wet sand pumping

China G/GH Sand Gravel Pumps Performance Parameters:

Model	Max. Power P (kw)	Capacity Q (m3/h)	Head H (m)	Speed n (r/min)	Eff. η (% )	NPSH (m)	Impeller Dia. (mm)
6/4D-G	60	36-250	5-52	600-1400	58	2-5.5	378
6/4E-G	120	36-250	5-52	600-1400	58	2-5.5	378
8/6E-G	120	126-576	6-45	800-1400	60	3-4.5	391
10/8S-G	560	216-936	8-52	500-1000	65	3-7.5	533
10/8S-GH	560	180-1440	24-80	500-950	72	2.5-5	711
10/8F-G	260	216-936	8-52	400-800	65	3-7.5	533
12/10F-G	260	360-1440	10-60	350-700	65	1.5-4.5	667
12/10G-G	600	360-1440	10-60	400-850	65	1.5-4.5	667
12/10G-GH	600	288-2808	16-80	350-700	73	2-10	950
14/12G-G	600	576-3024	8-70	300-700	68	2-8	864
14/12T-G	1200	576-3024	8-70	300-700	68	2-8	864
16/14G-G	600	720-3600	18-45	300-500	70	3-9	1016
16/14T-G	1200	720-3600	18-45	300-500	70	3-9	1016
16/14TU-GH	1200	324-3600	26-70	300-500	72	3-6	1270
18/16TU-G	1200	720-4320	12-48	250-500	72	3-6	1067
