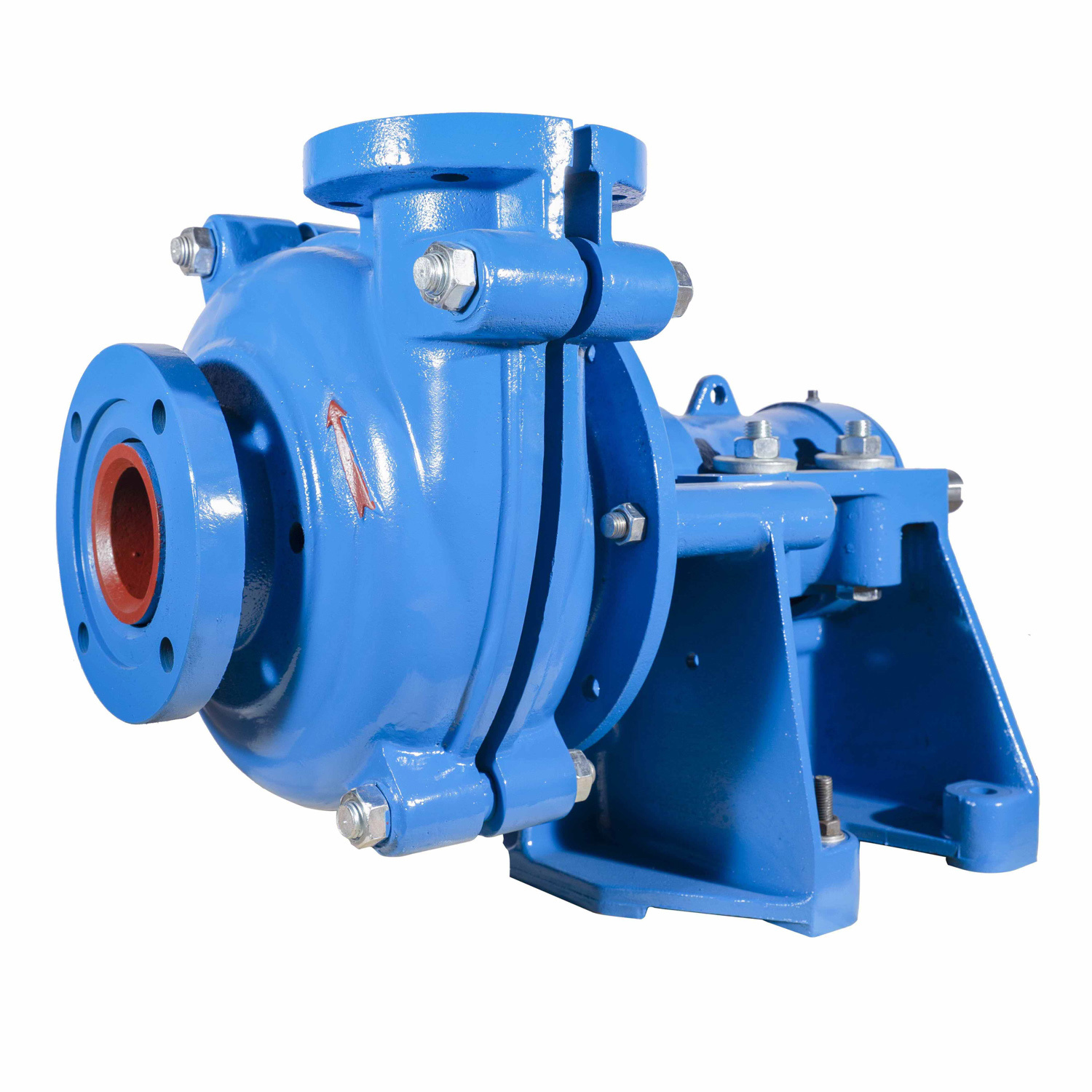

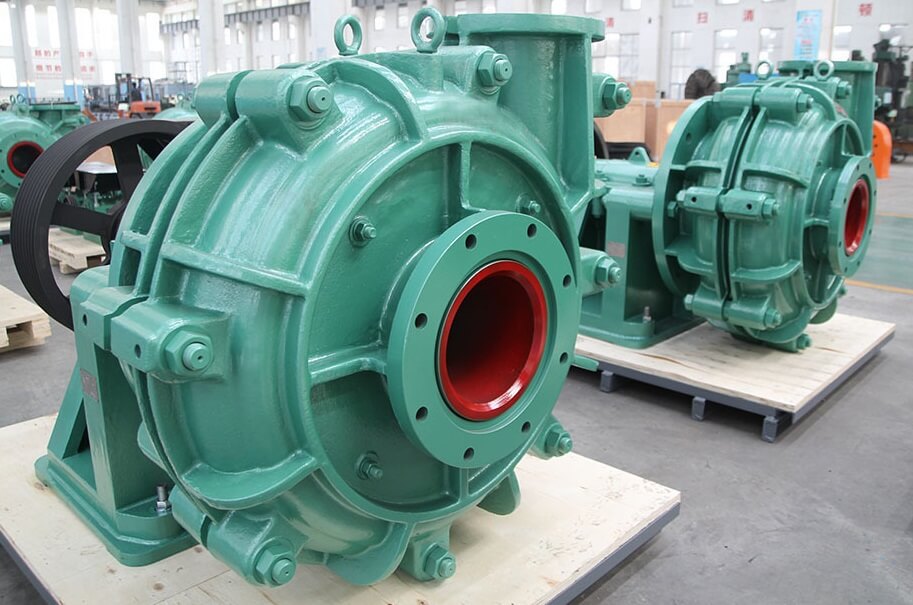

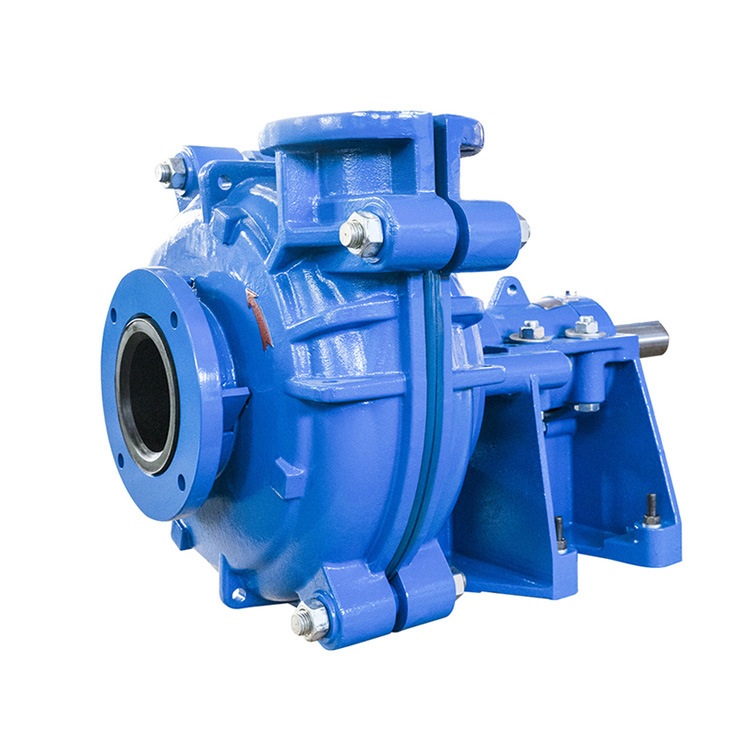

China AH Series Slurry Pumps are also called heavy duty slurry pumps. These types of pumps are fitted with thicker anti-abrasion wet-end parts and heavy duty base frames, so they are suitable for high abrasion, high density slurries or high head slurries with low density. They can be operated in multi-stage series installation within the maximum working pressure. Among them, type AH pumps are suitable for low density but high head slurries or high density but low abrasion high head slurries. All the above pumps can also be used for slurries with some corrosion.

China AH Series Slurry Pumps Two types of shaft seals: expeller seal and gland packing seal.

Expeller seal: expeller seal is adopted for single stage pumps or the first stage pumps in a multi-state series application, when the suction positive pressure is not 10% bigger than the discharge pressure. Expeller seal doesn’t require seal water, doesn’t dilute slurry, and has a reliable sealing effect.

Gland packing seal: Gland packing seal has a very simple structure, and is easy to maintain, but sealing water is a must. Gland seals are adopted where expeller seals are not appropriate.

China AH Slurry Pumps Drive Type

China AH Slurry Pumps Discharge angle

China AH Slurry Pumps Structural Drawing:

China AH Series Slurry Pumps Performance Parameters:

Model	Max. Power (kw)	Materials		Clear Water Performance					Impeller Vane No.
Model	Max. Power (kw)	Liner	Impeller	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)	Impeller Vane No.
1.5/1B-AH	15	M	M	12.6-28.8	6-68	1200-3800	40	2-4	5
1.5/1B-AH	15	RU	RU	10.8-25.2	7-52	1400-3400	35	2-4	3
1.5/1B-HH	30	M	M	16.2-34.2	25-92	1400~2200	20	1-5.5	5
2/1.5B-AH	15	M	M	32.4-72	6-58	1200-3200	45	3.5-8	5
2/1.5B-AH	15	RU	RU	25.2-54	5.5-41	1000-2600	50	2.5-5	5
3/2C-AH	30	M	M	39.6-86.4	12-64	1300-2700	55	4-6	5
3/2C-AH	30	RU	RU	36-75.6	13-39	1300-2100	60	2-4	5
3/2D-HH	60	M	M	68.4-126.8	25-87	850-11400	47	3-7.5	5
4/3C-AH	30	M	M	86.4-198	9-52	1000-2200	71	4-6	5
4/3C-AH	30	RU	RU	79.2-180	5-34.5	800-1800	59	3-5	5
4/3D-AH	60	M	M	97.2-198	9-53	1000-2200	71	4-6	5
4/3D-AH	60	RU	RU	79.2-180	5-34.5	800-1800	59	3-5	5
4/3E-HH	120	M	M	126-252	12-97	600-1400	50	2-5	5
6/4D-AH	60	M	M	162-360	12-56	800-1550	65	5-8	5
6/4D-AH	60	RU	RU	144-324	12-45	800-1350	65	3-5	5
6/4E-AH	120	M	M	162-360	12-56	800-1550	65	5-8	5
6/4E-AH	120	RU	RU	144-324	12-45	800-1350	65	3-5	5
6/4S-HH	560	M	M	324-720	30-118	600-1000	64	3-8	5
8/6E-AH	120	M	M	360-828	10-61	500-1140	72	2-9	5
8/6E-AH	120	RU	RU	324-720	7-49	400-1000	65	5-10	5
8/6R-AH	300	M	M	360-828	10-61	500-1140	72	2-9	5
8/6R-AH	300	RU	RU	324-720	7-49	400-1000	65	5-10	5
10/8ST-AH	560	M	M	612-1368	11-61	400-850	71	4-10	5
10/8ST-AH	560	RU	RU	540-1188	12-50	400-750	75	4-12	5
10/8E-M	120	M	M	666-1440	14-60	600-1100	73	4-10	5
10/8E-M	120	RU	RU	540-1188	10-42	500-900	79	5-9	5
12/10ST-AH	560	M	M	936-1980	7-68	300-800	82	6	5
12/10ST-AH	560	RU	RU	720-1620	7-45	300-650	80	2.5-7.5	5
14/12ST-AH	560	M	M	1260-2772	13-63	300-600	77	3-10	5
14/12ST-AH	560	RU	RU	1152-2520	13-44	300-500	79	3-8	5
16/14ST-AH	560	M	M	1368-3060	11-63	250~550	79	4-10	5
16/14TU-AH	1200	M	M	1368-3060	11-63	250~550	79	4-10	5
18/16TU-AH	1200	M	M	2160-5040	8-66	200-500	80	4.5-9	5
20/18TU-AH	1200	M	M	2520-5400	13-57	200-400	85	5-10	5

China AH Series Slurry Pumps Outline Dimensions:

Pump Size	A	B	C	D	U	Key size	E	G	H	J	K	L	M	Approximate mass (kg)
Pump Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	metal	rubber
1.5/1 BAH	583	295	248	197	28	8X7	79	181	98	171	46	-	106	90	75
2/1.5 BAH	596	295	248	197	28	8X7	79	203	114	184	33	-	115	100	85
3/2 CAH	777	406	311	254	42	12X8	122	238	138	210	67	-	156	200	160
4/3 CAH	848	406	311	254	42	12X8	121	292	149	262	20	-	192	300	230
4/3 DAH	948	492	364	330	65	18X11	152	292	149	262	100	-	192	380	280
6/4 DAH	1028	492	364	330	65	18X11	150	406	229	338	12	-	228	660	420
6/4 EAH	1188	622	448	457	80	22X14	220	406	229	338	139	-	228	810	620
8/6 EAH	1318	622	448	457	80	22X14	222	551	318	460	-	62	292	1510	980
8/6 FAH	1518	857	635	610	100	28X16	279	551	318	460	91	-	304	1650	1160
10/8 FAH	1650	990	705	610	100	28X16	279	667	419	635	-	12	334	2650	1970
10/8 STAH	1753	1150	780	650	120	32X18	280	667	419	635	28	-	334	3450	3210
12/10 FAH	1721	990	705	610	100	28X16	279	749	464	673	-	104	381	4080	3040
12/10 STAH	1827	1150	780	650	120	32X18	280	749	464	673	-	64	381	4470	3730
12/10 TAH	2204	1150	1040	650	150	36X20	350	749	464	673	-	64	381	5200	4570
14/12 FAH	1777	990	705	610	100	28X16	279	944	629	832	-	264	406	5900	4180
14/12 STAH	1879	1150	780	650	120	32X18	280	944	629	832	-	224	406	5490	4870
16/14 TUAH	2320	1460	1050	900	150	36X20	350	1048	660	889	-	84	451	10560	7860
20/18 TUAH	2475	1460	1050	900	150	36X20	350	1414	940	1230	-	417	580	17760	12890

China AH Series Slurry Pumps Applications:

slurry pumps are cantilevered centrifugal slurry pumps, which are designed for the handling of highly abrasive or corrosive high density slurry, and are widely used in Metallurgical, Mining, Petroleum & Chemical, Coal, Power Plants, Transportation, River dredging, Building material and Municipal projects etc..
